Project Overview

Professional Systems Engineering (PSE) Professional Systems Engineering (PSE) was engaged to provide for replacement and upgrades to existing control and jail technology systems at the Trumbull County Adult Detention Center. PSE provided design, engineering, bid support, and construction administration services to deliver reliable, effective, and ergonomic jail technology systems upgrades. The control system that will be provided for the Trumbull County Adult Detention center will be non-proprietary, easy to maintain, off-the-shelf, control system that does not tie the Facility to a particular manufacturer. This allows flexibility and room for expanding and maintaining the system and should keep overall lifetime costs of the system down.

The Center is actually two detention facilities in one: The Minimum Security Jail (M.S.J.) and the Full Service Jail (F.S.J.). The entire building is a 180,000 SF facility housing approximately 314 inmates. Services for this facility require the upgrade, replacement and integration of master control centers, local control stations, intercom and paging, duress, video surveillance, master clock and guard tour replacement.

Services Provided

Control System
  • Door and gates control/ monitoring with PLC integration
  • Cell control/monitoring
  • Redundant monitoring stations
  • Touchscreen control system in each housing unit
  • Touchscreen control in each master control for emergency take-over
  • Redundant programmable logic controller (PLC) systems
  • Self-healing fiber optic network
  • New security intercom and paging head-end system
  • Housing unit console replacement
  • UPS back up for equipment
  • Jail management system integration

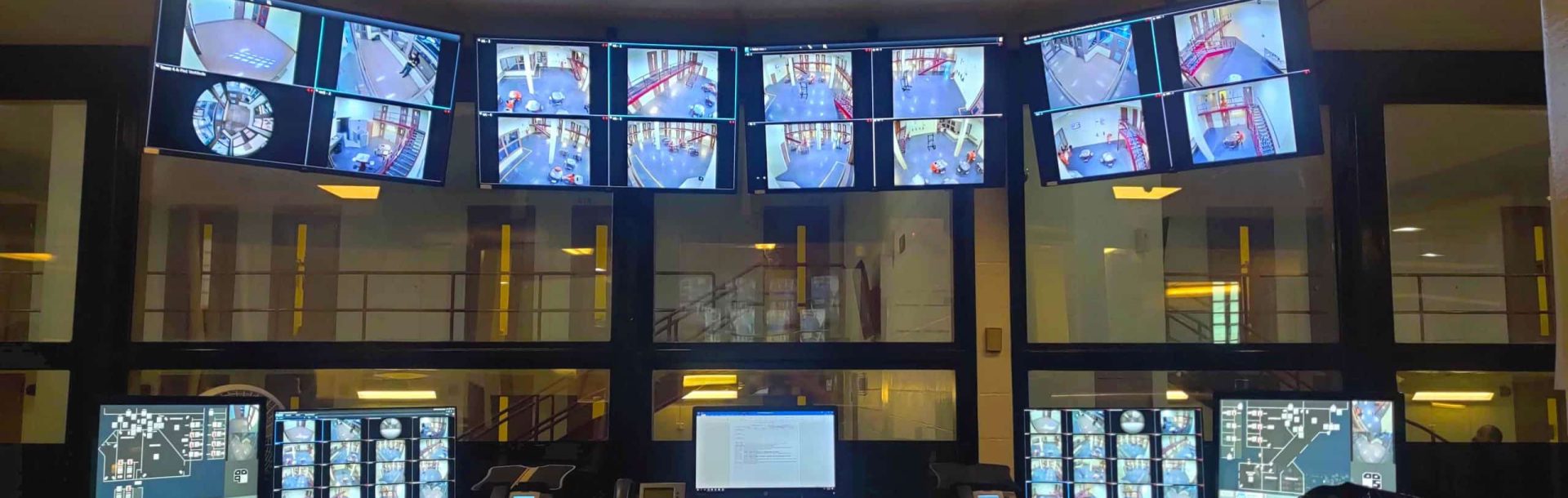

  • Central control and local control room redesign

Detention Hardware and Openings
  • Replacement of malfunctioning electro-mechanical locks
  • New electro-mechanical locks
  • Detail hardware evaluation, coordination, and specifications
  • Replacement of detention doors and frames where required
  • Surface mount detention lock upgrades

Video Surveillance
  • IP upgrade and integration
  • PLC integration

Emergency Generator
  • Replacement of 450 KVA emergency outdoor generator with critical grade muffler
  • Fast hot-swap in 24 hrs. using existing 408Volt / 3-phase power infrastructure
  • Reuse of all ATS and switchgear with full load-bank testing
  • NEC 70 and Article 760, Ohio Fire Marshal, Ohio DEP and NFPA 76A approvals
  • Added 3 parking spaces with smaller Genset dimensions with bigger payload
