Project Overview

The staff at Professional Systems Engineering, LLC (PSE), having performed original designs for this energy producer was called to redesign the perimeter fence and intrusion detection systems. With a tight time frame, the project ran smoothly with all documents meeting NRC and owner’s team expectations.

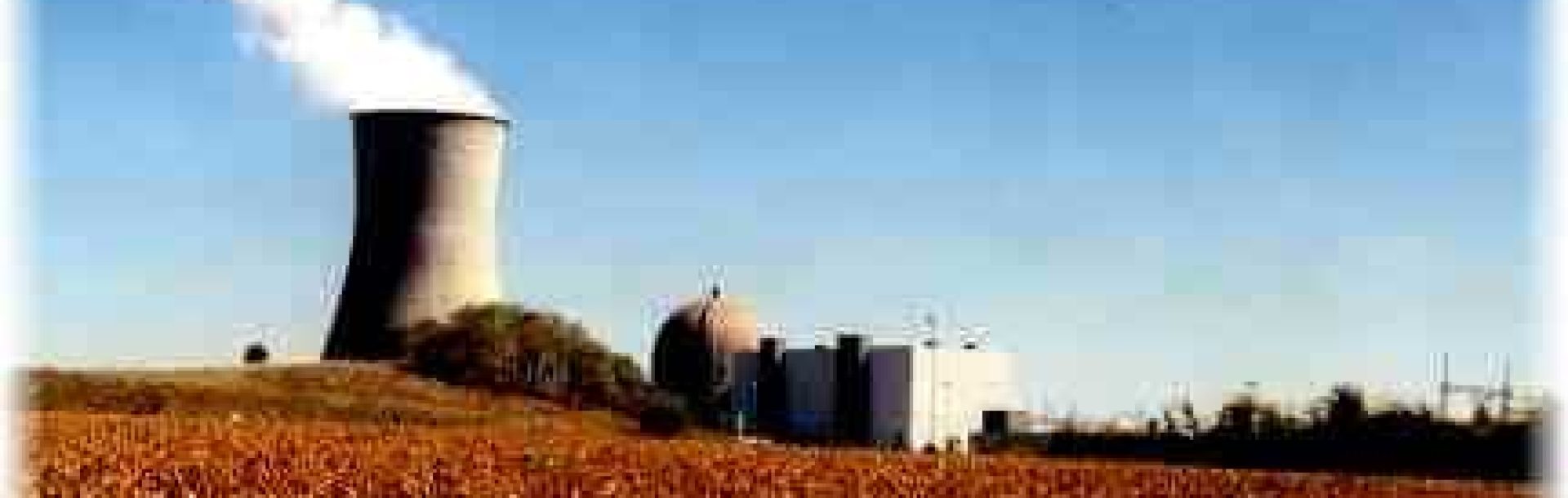

As part of the steam generator replacement project, PSE prepared detailed designs for the expansion of the existing Callaway Nuclear Generator Station. The 1235 megawatt pressurized water required enhancements to secure the perimeter. The design included development of all construction documents including fence and barrier location drawings, equipment location drawings, system block diagrams, interconnection wiring diagrams, CCTV design, equipment mounting details, conduit and cable lists, bills of material, purchase requisitions, plant modification package, and acceptance test procedures. The design included perimeter barriers, perimeter duct bank, perimeter intrusion detection, CCTV cameras, and towers high mast lighting, interfacing with the existing security system power supplies, computer system, alarm stations, multiplexers, and CCTV switching and control system.

Services Provided

Nuclear Regulatory Compliance
  • Design input record (DIR)
  • Design document status report (DDSR)
  • Re-licensing input
  • Plant modification package (PMP)
  • Acceptance test procedures
  • Personnel access, nuisance delay and vehicle barriers

Security Improvements
  • Fencing and barrier designs
  • Perimeter duct banks
  • Intrusion detection (PIDS)
  • CCTV surveillance
  • High mast lighting
  • Block diagrams, mounting details, conduit/cable lists, bills of materials, and purchase requisitions
